Starting at £8,925.00 (ex vat)

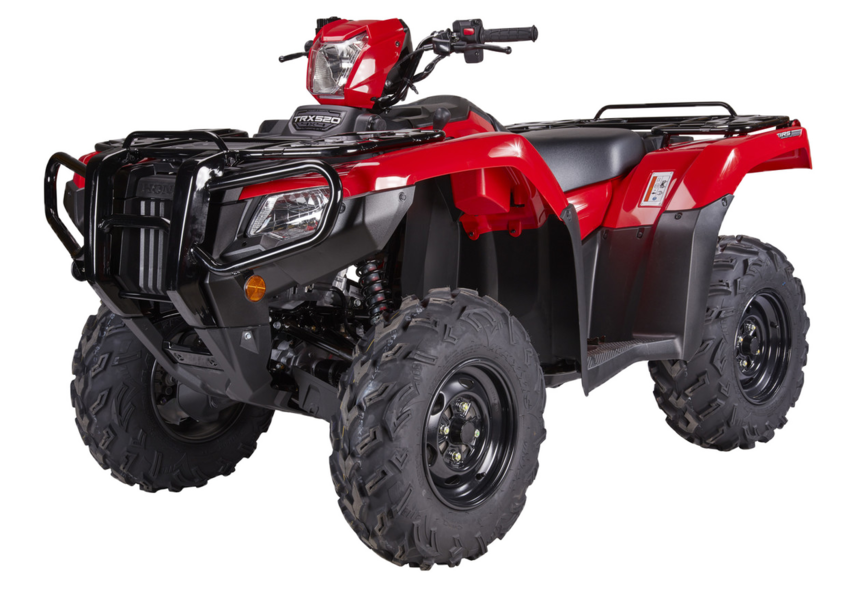

TRX520FM6 - manual, power steering, independent rear suspension.

  • 5fwd/1rev gears
  • Manual transmission
  • Power Steering (PS)
  • Independent Rear Suspension (IRS)

Manual, Power Steering (PS), Independent Rear Suspension

ClassificationHeavy duty ATV
Engine518cc liquid cooled, longitudinally mounted single-cylinder four-stroke
CarburationPGM-FI 36mm
IgnitionFull-transistorized with electronic advance
TransmissionManual 5 speed + reverse
DriveDirect front and rear driveshafts with TraxLok™ and locking front differential.
Front SuspensionDouble wishbone; 185mm travel
Rear SuspensionIndependent dual-arm; 215mm travel
Power SteeringYes
Front Brakes190mm dual hydraulic discs
Rear Brake170mm single hydraulic disc
Front tyres25 x 8-12
Rear tyres25 x 10-12
Fuel Capacity (l)14.7L, incl. 4.9L res.
Bore x Stroke (mm)96.0 x 71.5
Dimensions – Length (mm)2140
Dimensions – Width (mm)1200
Dimensions – Height (mm)1230
Wheelbase (mm)1290
Seat Height (mm)910
Ground Clearance (mm)240
Towing Capacity (kg)599
Front Rack Capacity (kg)99 pounds
Rear Rack Capacity (kg)187 pounds
