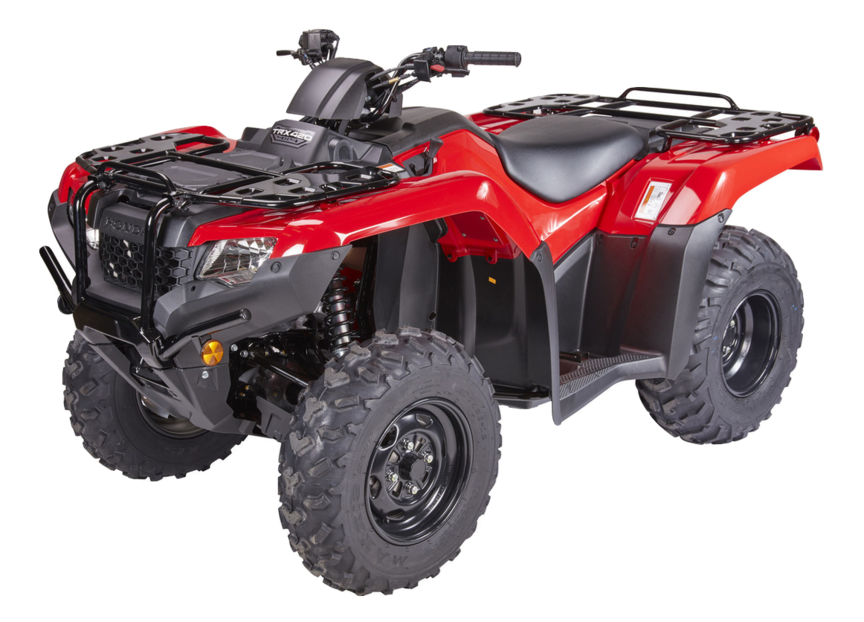

TRX420FE1
Starting at £8,780.00 (ex vat)TRX420FE1 - Electric Shift (ESP)
Overview- 420cc
- 5fwd/1rev gears
- Handlebar mounted electric gear shift (ESP)
- Gear position indicator
- Swingarm with single shock
- PX Welcome
Electric Shift
| Classification | Utility work ATV |
| Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
| Carburation | PGM-FI 34mm |
| Ignition | Full transistorized with electronic advance |
| Starter | Electric |
| Transmission | Automatic ESP push-button; 5 speed and reverse |
| Drive | Front and rear driveshafts with TraxLok™ and torque-sensing front differential. |
| Front Suspension | Independent double-wishbone; 170mm travel |
| Rear Suspension | Swingarm with single shock; 170mm travel |
| Power Steering | No |
| Front Brakes | 190mm dual hydraulic discs |
| Rear Brake | 160mm sealed mechanical drum |
| Front tyres | 24 x 8-12 |
| Rear tyres | 24 x 10-11 |
| Fuel Capacity (l) | 14.9L, incl. 4.9L reserve. |
| Bore x Stroke (mm) | 86.5 x 71.5 |
| Dimensions – Length (mm) | 2100 |
| Dimensions – Width (mm) | 1200 |
| Dimensions – Height (mm) | 1170 |
| Wheelbase (mm) | 1270 |
| Seat Height (mm) | 855 |
| Ground Clearance (mm) | 180 |
| Towing Capacity (kg) | 384 |
| Front Rack Capacity (kg) | 33 pounds |
| Rear Rack Capacity (kg) | 66 pounds |
